The FTB9000 series is a high-power bidirectional DC power supply that functions both as a source and a regenerative load (returning up to 95% energy to the grid). With full digital control and seamless cross-quadrant switching, it is ideal for testing automotive electronics, energy storage, and fuel cells.

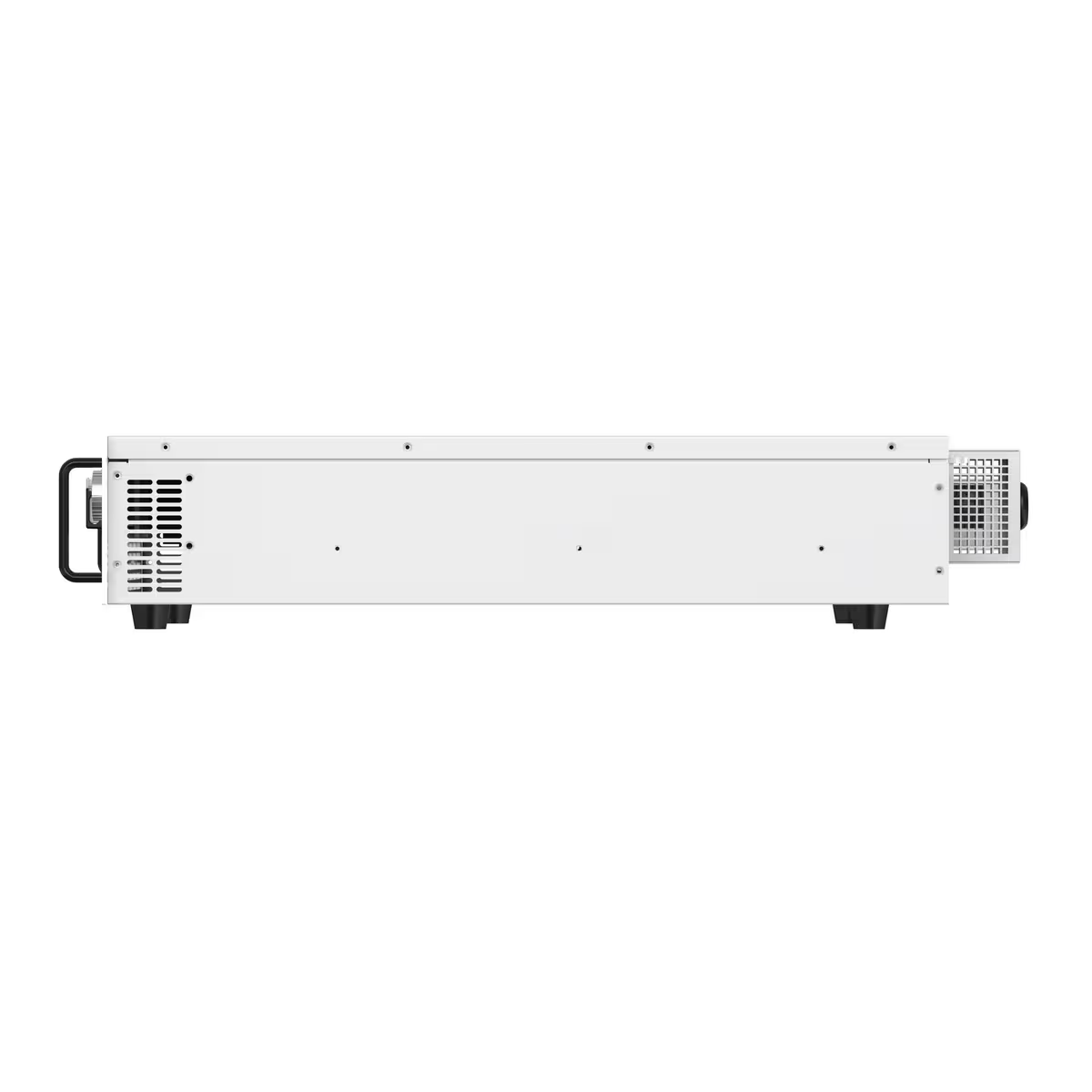

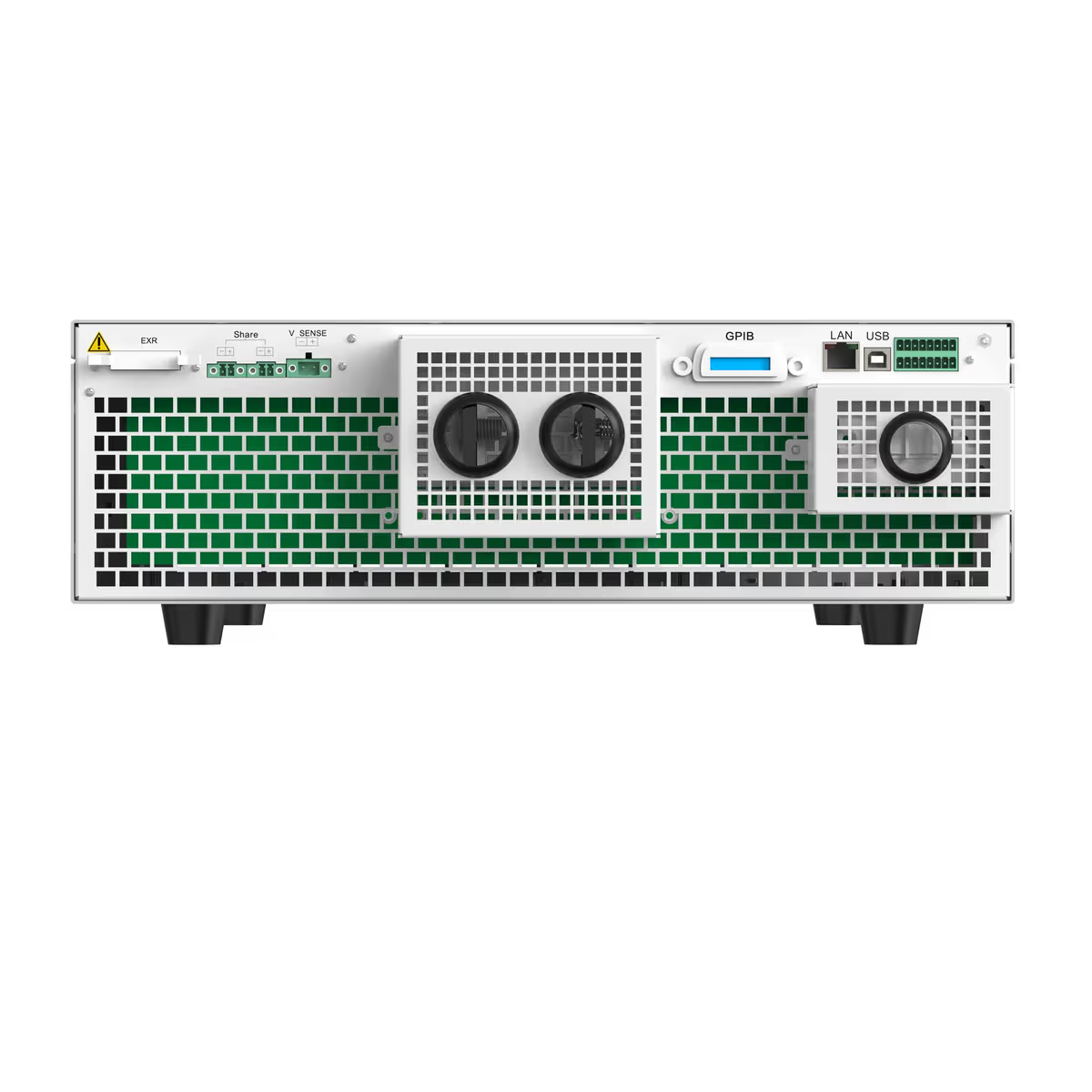

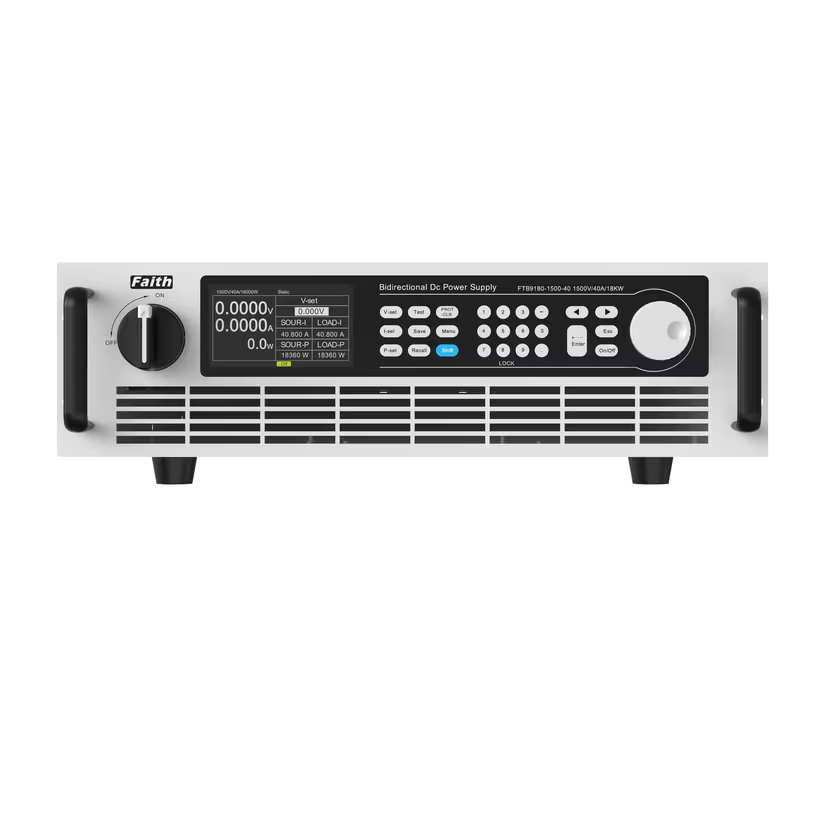

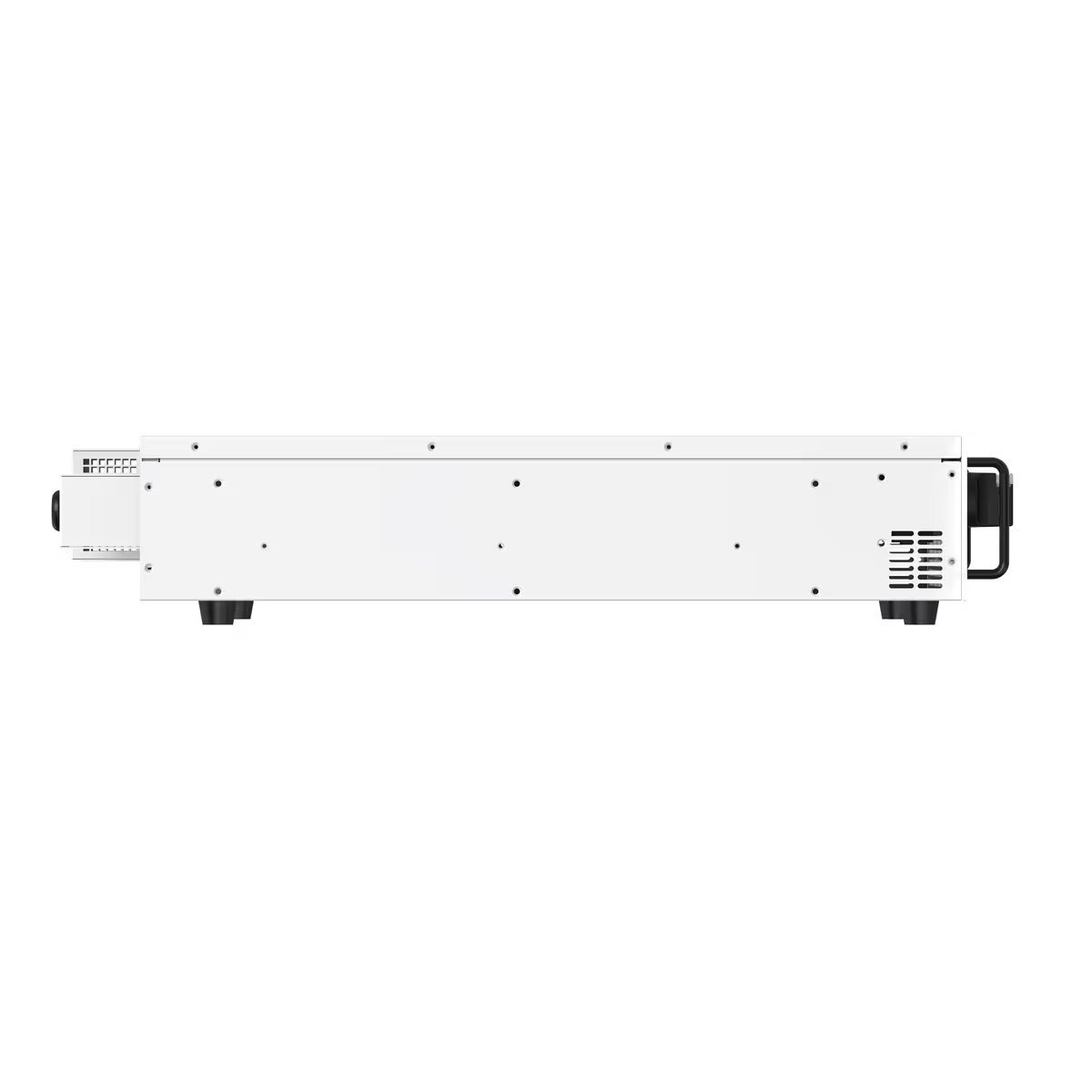

FTB9000 Series Wide Range High Power Bidirectional Programmable DC Power Supply
Key Features
-
Voltage Range & Precision: Output up to 2250V with 0.02%+0.02%F.S. accuracy, plus CV mode and adjustable voltage slopes.
-
Current Capacity & Modes: Output up to ±4500A with 0.1%+0.1%F.S. accuracy, CC mode, and fast dynamic response.
-
Power Output & Efficiency: Delivers up to ±180kW per unit (scalable to 1.8MW) with >93% overall efficiency and CP/CR modes.
-
Bidirectional & Regenerative: Seamless two-way energy transfer with 95% grid feedback efficiency.
-
Simulation & Interfaces: Built-in charge/discharge, battery/solar simulation, comprehensive protections, and multi-protocol control (LAN, USB, CAN, RS485).
