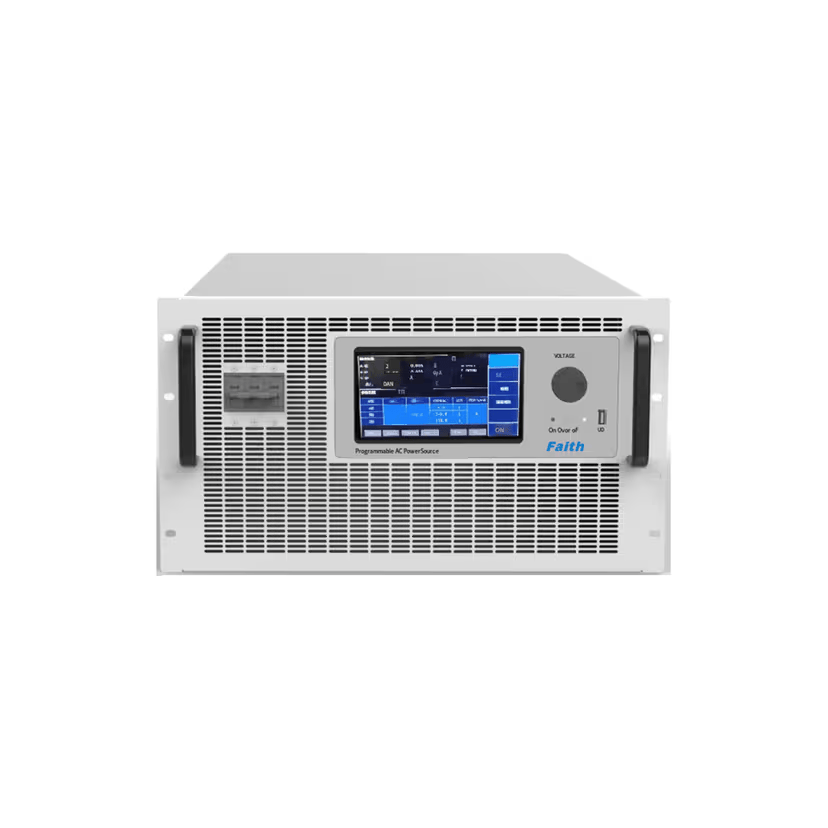

The FTPS series is a programmable bidirectional AC power supply and regenerative power grid simulator that operates as both an AC source and a feedback load. It feeds 100% of the energy from the equipment under test (EUT) back into the power grid. Built with advanced DDS waveform generation technology and full digital control in a compact modular chassis (1/10th the size of traditional transformer-based power supplies), it provides high stability, ultra-low distortion, and frequency output ranging from 1Hz to 550Hz.
FTPS Series Programmable Bidirectional AC power supply Regenerative grid simulator
Key Features
-
Voltage, Current & Frequency Range: Delivers wide AC frequency output from 1Hz to 550Hz with precise measurement of Vrms, Irms, Active Power (W), Power Factor (PF), and Ipeak.
-
100% Regenerative Feedback: Features a two-way converter that enables 100% rated current energy feedback to the grid, dramatically lowering energy consumption and operational heat.
-
DDS Synthesis & Waveform Control: Uses Direct Digital Synthesizer (DDS) design with low waveform distortion, supporting up to 50 harmonic editing, phase/starting angle adjustments, and 5V TTL level mutation triggers.
-
Ultra-Compact Modular Density: High power density modular construction reduces equipment volume to one-tenth that of legacy transformer systems while lowering overall failure rates.
-
Interactive Control & Connectivity: Equipped with a touch screen and adjustment knob interface, dedicated PC software for online parameter mutations, and multiple interfaces including RS232, RS485, CAN2.0B, and LAN.
