TiS55 PRO, TiS65 PRO, TiS75 PRO Thermal Imager

Key features:-

Infrared resolution up to 384 × 288 pixels (110,592 pixels) with SuperResolution up to 768 × 576 pixels, providing enhanced thermal image clarity for detailed fault detection.
High thermal sensitivity of ≤ 40 mK (0.04°C) and temperature measurement range up to 650°C (TiS75 PRO), enabling accurate detection of minor temperature variations.
Equipped with IR-Fusion® technology, 1–4x digital zoom, 13 MP visible-light camera, and 9 Hz / 30 Hz frame rate options for comprehensive thermal analysis.
Supports wireless image transfer, QR/barcode-based asset tagging, and storage on a 64 GB SD card (expandable up to 1 TB) for efficient data management and traceability.

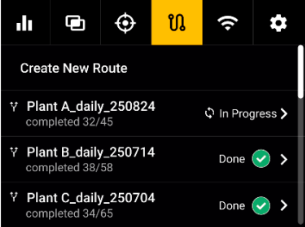

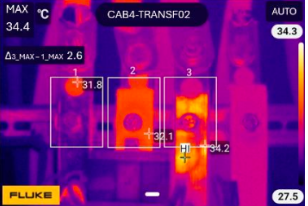

Features automatic 3-phase maximum temperature difference calculation, route-based inspections, and Fluke Connect Express software for advanced analysis, trend monitoring, and one-click report generation.

Product overview:- TiS55 PRO, TiS65 PRO, TiS75 PRO

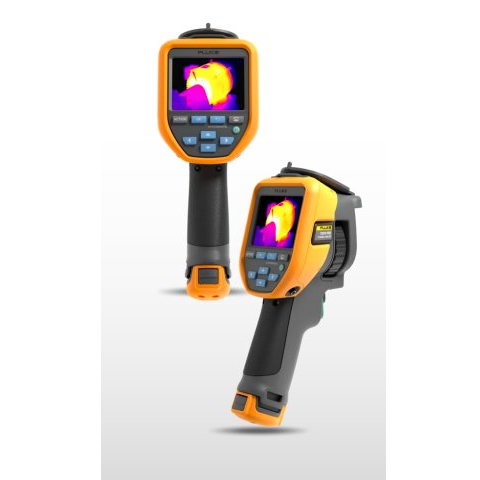

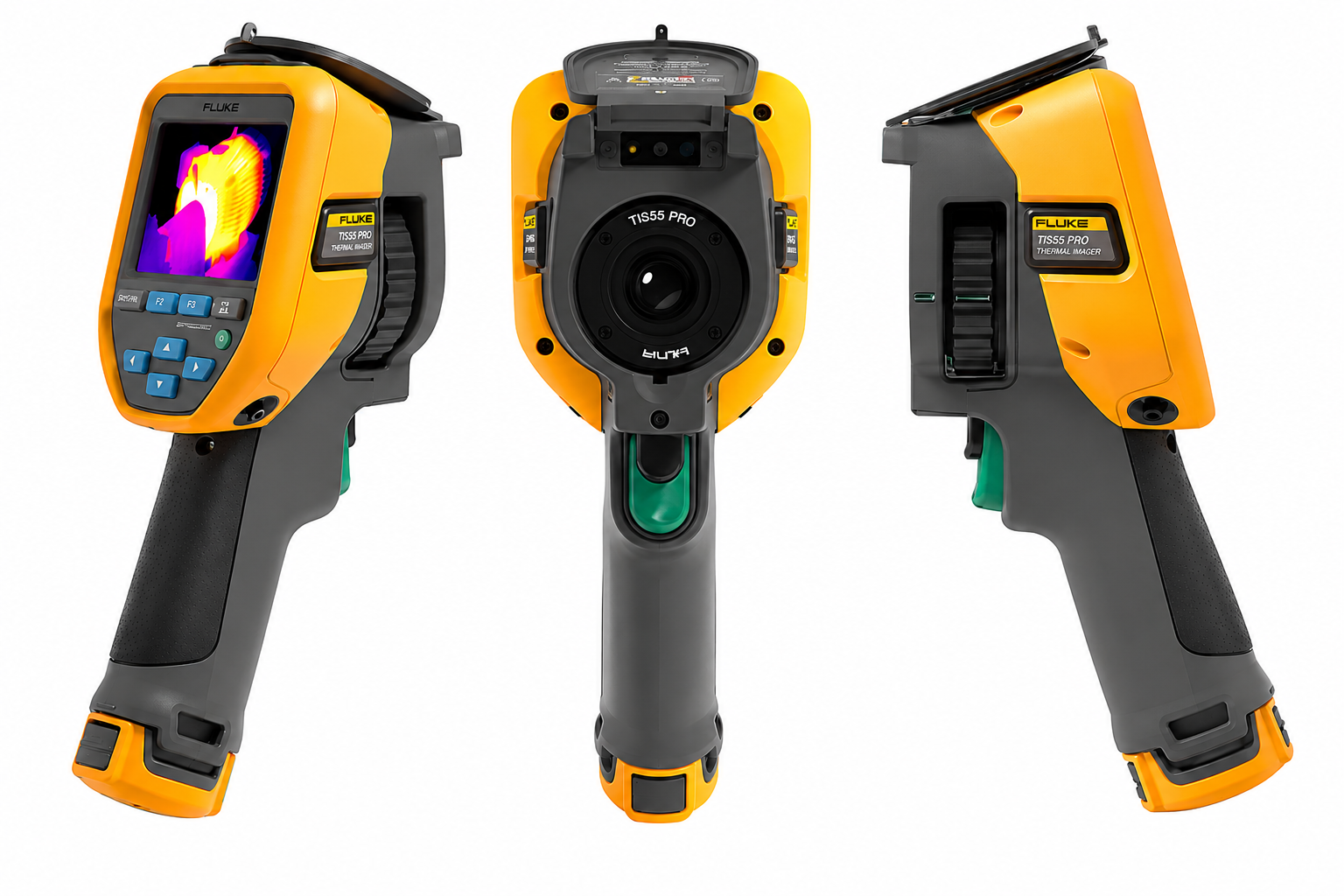

The Fluke TiS55 PRO, TiS65 PRO, and TiS75 PRO are professional-grade thermal imaging cameras engineered for predictive maintenance, industrial inspections, troubleshooting, and quality assurance applications. Equipped with high-resolution uncooled focal plane infrared detectors and SuperResolution technology, these imagers deliver precise thermal data and enhanced image quality for detailed diagnostics. Advanced features such as QR code-based asset tagging, route-based inspection management, and customizable measurement profiles improve workflow efficiency and ensure inspection consistency. The devices support IR-Fusion® technology, wireless image transfer, automatic 3-phase maximum temperature difference analysis, and comprehensive temperature measurement tools. Integrated with Fluke Connect Express software, they enable thermal image analysis, trend monitoring, and automated report generation. With rugged construction, IP52 protection, manual focus capability, and long-life rechargeable batteries, the TiS PRO series is designed to provide reliable performance in demanding industrial environments.

📄
